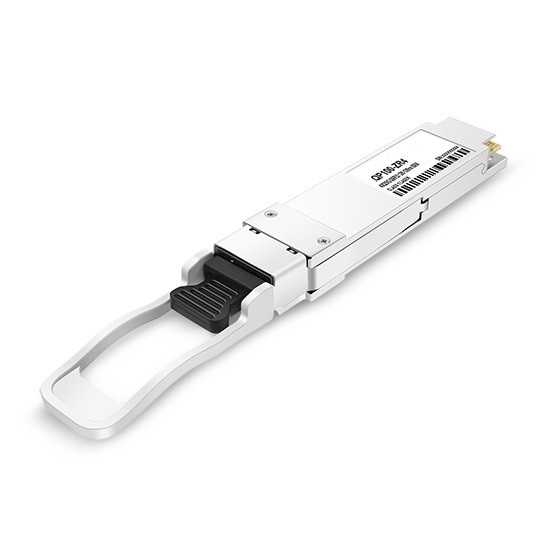

QSFP28 100G ZR4 80km Fiber Optical Transceivers 100GBASE-ZR4

Name: QSFP28 100G ZR4 80km Fiber Optical Transceivers 100GBASEZR4
Brand: Optowix
Price: 1 USD

Brand Name : Optowix

Model Number : MK1Q-LRTG

Certification : CE

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 10Kpcs

Delivery Time : 5-8 working days

Packaging Details : ESD plastic case

Optowix PN : MK1Q-LRTG/MK2Q-LRTG

Product Name : 100G ZR4 80km QSFP28 module

SpeedRate : 100G

TX : 4X25G EML Laser

RX : 4X25G SOA receiver

Distrance : 80km

Warranty : 12 Months

Application : Datacenter

Interface : LC duplex

Contact Now

100G QSFP28 Transceiver ZR4 80km Module Optical Transceiver Module 100GBASE-ZR4

Features

Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
High speed I/O electrical interface (CAUI-4);
I2C interface with integrated Digital Diagnostic monitoring;
QSFP28 MSA package with duplex LC connector;
Single +3.3V power supply
Power dissipation
Commercial: < 4.5W
Industrial: <6W
 Temperature Range:
Commercial: 0°C ~+70°C
Industrial: -40°C ~+85°C
Complies with EU Directive 2015/863/EU;
Support line rates from 103.125 Gb/s;
Lane bit rate 25.78 Gb/s 100GE
Up to 80km transmission with KR4-FEC.
LAN WDM EML laser and PIN receiver with SOA;

Applications

100G Ethernet
Other optical links

Standards

SFF8679,SFF-8636
SFF-8665, SFF8661
IEEE 802.3ba,IEEE 802.3bm

Ordering Information

Part. No	Specifications
	Pack	Rate	Tx	P	Rx	S	Top	Reach	Other
		(Gbps)	(nm)	(dBm)		(dBm)	(℃)	(km)
MK1Q-LRTG	QSFP28	4x25.78	1295.56	1~6.5	SOA	-27	0~70	80	RoHS
			1300.05
			1304.58
			1309.14
MK2Q-LRTG	QSFP28	4X25.78	1295.56	1~6.5	SOA	-27	-40~85	80	RoHS
			1300.05
			1304.58
			1309.14

Product Description

MK1Q-LRTG is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Storage Temperature	TS	-40	85	°C
Maximum Supply Voltage	VCC	-0.5	3.6	V
Operating Relative Humidity	RH		85	%
Operating Relative Humidity	RH		85	%
